Alright so I've been seeing many people on here with network/router problems so i decided to post this here. PUTTING YOUR PS3 IN A DMZ Firstly you may be wondering what a DMZ is, this stands for a demilitarized zone. it really means that rather than opening just one port on your routers firewall you are actually opening every single one. Port opening is another simple process, however it takes a bit of time to find exactly what ports need opening, and sometimes, the ports listed may not solve the problem you have. There is no risk regarding security/virus' etc when using this with the ps3, Your router will only send the traffic through to the DMZ that you have specified. Putting your PS3 into a DMZ is not a bad thing, and is much easier than opening port for the reason listed above. Now you may need to do this for some of the following reasons: * Not being able to rooms * Not being able to speak over headset * Not being able to hear over headset * Not being able to games which are hosted by certain people * Any problems to do with connectivity to the PSN or game specific servers, especially if your computer will connect to the internet, but PS3 won't. * Problems with media servers Now on with the guide. The Guide! To put your PS3 into a DMZ (To be done on the PS3 Console) Firstly, you will need to assign your PS3 a static internal Ip address. This means that everytime your PS3 connects or "talks" to your router, the router will assign it a different internal IP address. These IP addresses typically run in series. So for example, if your PS3 is the second device communicating with your router, then it will be assigned an ip address of 192.168.1.3. However, if you choose to use your PS3 without the computer being on, the assigned IP address your PS3 has will be 192.168.1.2. As this is different, and obviously will change, it would be stupid setting a DMZ up on one of the above Ip addresses, unless your PS3 was the only device that would ALWAYS connect using that specific IP. To make sure that your PS3 is always assigned the same internal IP address by your router, you will need to go to the "Settings > Network Settings > Internet Connection Settings" option on the PS3 Cross bar menus. You will be presented with an option which primarily asks whether you are using a Wired or Wireless connection. Obviously, you will choose the option which refers to you. If choosing the Wireless

option you will need to input the security details in use on your router *If you are not currently using wireless security, i strongly reccommend you do so ASAP* Both selections should show a page called "Address Settings". Here you will need to select "Custom". Another page will then display entitled "IP Address Setting". The option "Manual" will need to be selected. This will display a page where customisable IP Addresses are available to be selected. IP Address - This will need to have the Static IP address in it. Personally, i use 192.168.1.101. I use this because it is extremely unlikely my Router will ever automatically assign this IP Address to a device, as i will never have 100 other devices connected to the same system. Subnet Mask - Is always set to 255.255.255.0 Default Router - Is the internal IP Address of your router. To get the exact ip of your router you should go to Start Run cmd [Hit Enter] Type in ipconfig and hit enter, this should come up with all the ip addresses to do with your computer and the network. The address you will need to enter in this option is listed as "Default Gateway". There might be a few different networks depending on your computer specifications but your looking for the Ethernet adapter. Primary DNS - Same IP Address as "Default Router" Secondary DNS - Same IP Address as "Default Router" After entering all of these IP Addresses, you will now click "Enter" or hit the "right" button on the DPad. This will take you to a screen which says "MTU" at the top. If your router has the option to change the MTU size then use 1500 in bytes, this is to be done on both the PS3 and the router page. If you cant change the MTU size then set this to automatic The next steps are very simple. You do not want to use a proxy server unless you connect to the internet using one, however i can be of no help there, and you should enable UPnP if your router s it. If you get errors when you test the connection later on, then turn this off and try again. To put your PS3 into a DMZ (To be done on the PC) Now head over to your PC, and load up your internet browser. In the Address Bar, (The place where you put WWW.) type the IP Address of your router (the one you found using the Command Prompt earlier under "default gateway") This will take you to your Router Configuration Page.

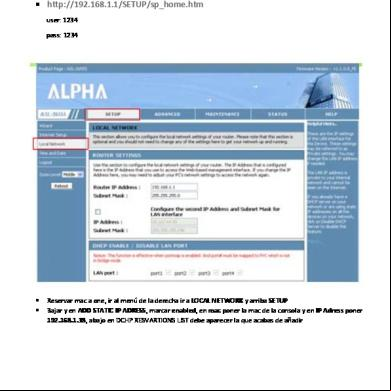

There may be a security page or popup. if you don't know the name and then Google your router for the default , check on your router label or ring your ISP. Every router interface differs from an other, and depending on what router firmware update you last installed, router interfaces can differ, even on the same model routers. This means that you will need to search the router config page yourself. You are looking for any mention of "DMZ" or "DMZ Host" When you have found this, it will ask you generally to input the IP Address of your DMZ Host, which is just the static IP address you assigned to your PS3 earlier, my example was 192.168.1.101, so we'll stick with that. Then click "apply" or similar. You should then turn off everything running on your home network. PS3, PC, Router etc. This is solely to make sure that the changes are applied as soon as possible. This should fix all of the problems as listed earlier in this guide, and probably some other issues. If you do need any help then when you post, along your with problem could your also give some more details. Like: - Your Connection, ADSL or Cable. - How you have your network setup. - Your router Make and Model.
